10014-HALO Beacon Halo Lightning Protection

The ERI Beacon Halo is intended for lighting and beacon protection on AM and Shortwave towers. The Beacon Halo is designed to attach to the tower top beacon plate (not included) and is designed with no sharp edges or angles that could induce corona discharges.

1014-HALO Beacon Lightning Protection for AM and Shortwave Towers

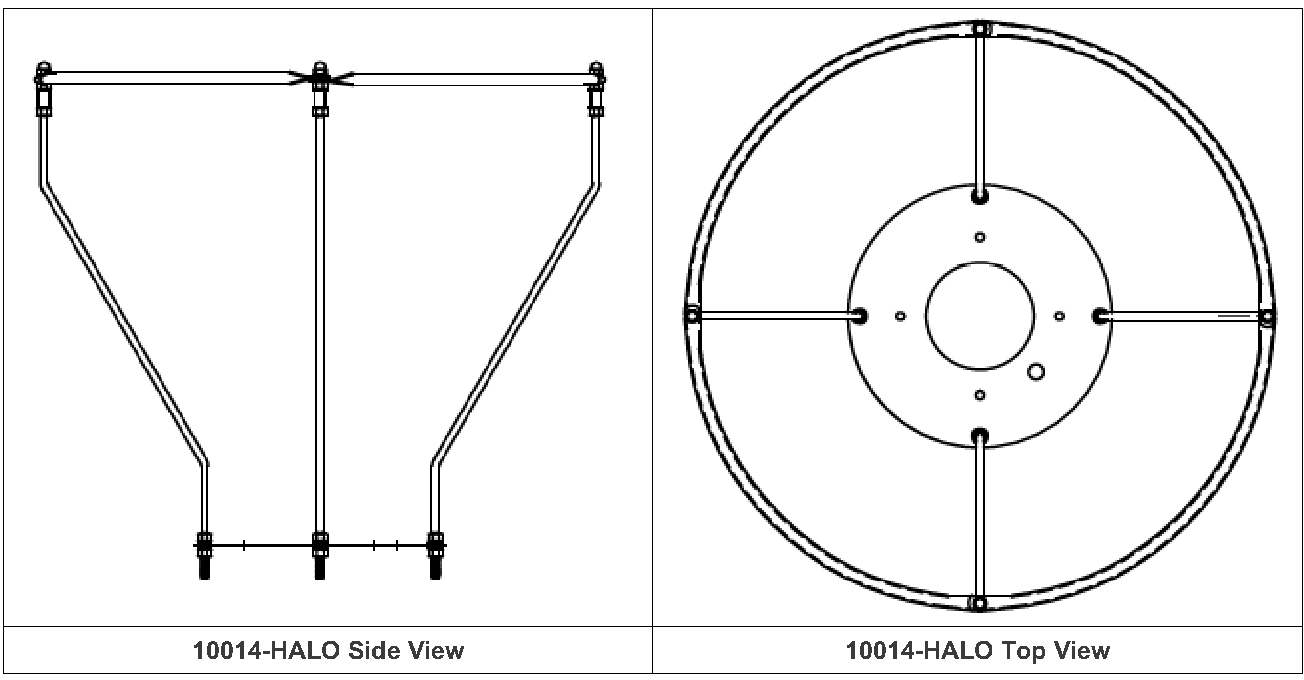

  • 10014-HALO
    Beacon Halo for AM and Shortwave towers. Rounded design with no sharp edges that could induce corona discharges. HALO Ring constructed from four (4) sections of stainless steel 0.75-inch (19-millimeter) Schedule 40 pipe to form a 48-inch (1219-millimeters) in diameter “Halo”. Which is supported at 3.0-feet (914 millimeters) above the beacon plate by four (4) 5/8-inch (16-millimeter) galvanized steel support rods. Design to mount to a standard obstruction light beacon plate with four (4) 11/16-inch (18-millimeter) mounting holes on a 20-¼-inch (514-millimeter) bolt circle. Weight: 35 pounds (15.9 kilogram)
