FM Coaxial Fine Matchers
ERI coaxial fine matchers, are fixed flanged both ends with models available for FM, High Band VHF, and UHF broadcast bands. Most models include one captivated inner connector and one flange hardware kit. Tuners include locking nuts and pressure-tight caps. They do not include mounting brackets or hardware. These are available from ERI at additional cost. Maximum input power handling capability is 90% of transmission line rating.

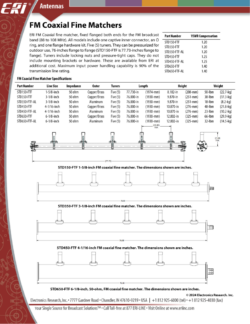

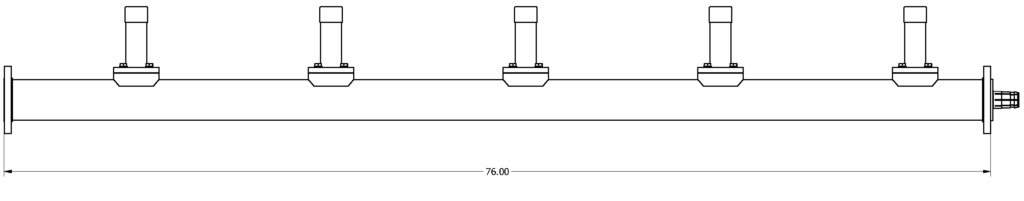

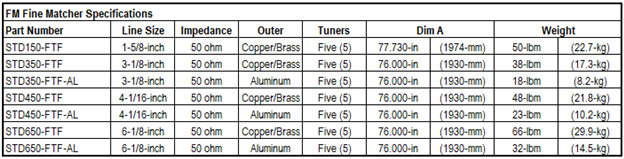

FM Coaxial Fine Matchers
ERI FM coaxial fine matcher are flanged on both ends for the FM broadcast band (88 to 108 MHz), fixed flanges, and includes one captive inner connector, O ring, and one flange hardware kit. Five (5) tuners. Can be pressurized for outside use. 76-inches flange to flange. Tuners include locking nuts and pressure-tight caps. Does not include mounting brackets or hardware. These are available from ERI at additional cost.

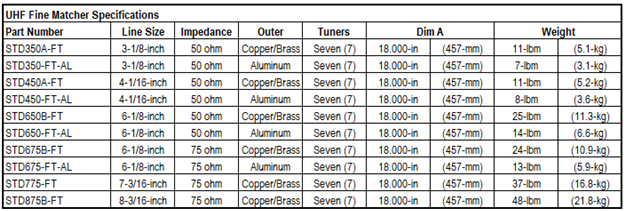

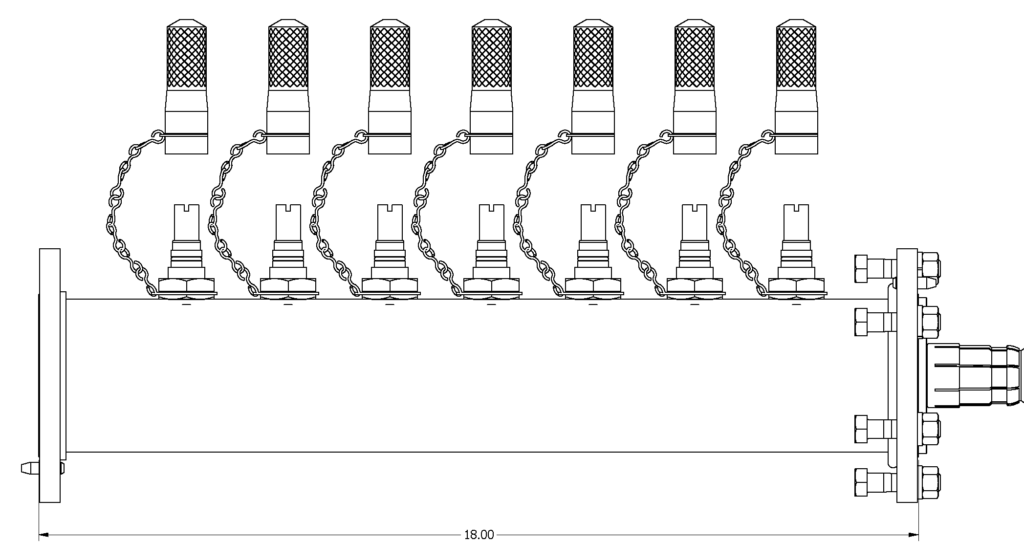

UHF Coaxial Fine Matchers
 ERI UHF coaxial fine matcher are flanged on both ends for the UHF television broadcast band (470 to 806 MHz). ), fixed flanges and includes one captivated inner connector and one flange hardware kit. 7 tuners. 18-inches flange to flange. Tuners include locking nuts and pressure-tight caps. Does not include mounting brackets or hardware. These are available from ERI at additional cost.
|

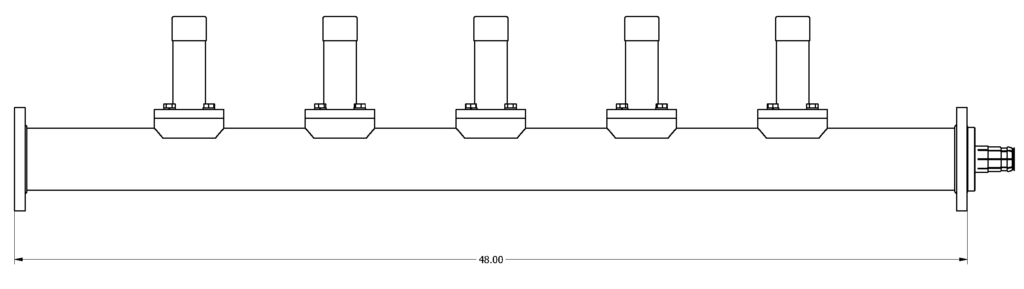

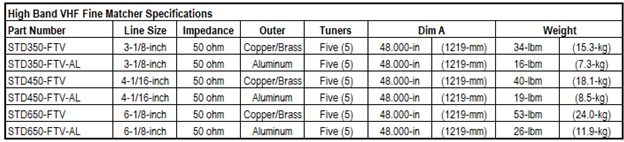

High Band VHF Coaxial Fine Matchers
ERI High Band VHF coaxial fine matchers are flanged on both ends for the high band VHF television broadcast band (174 to 216 MHz). ), fixed flanges and includes one captive inner connector, O ring and one flange hardware kit. Five (5) tuners. Can be pressurized for outside use. 48-inches flange to flange. Tuners include locking nuts and pressure-tight caps. Does not include mounting brackets or hardware. These are available from ERI at additional cost.
