Beacon Ice Shields

ERI manufactures beacon and side marker ice shields that are suitable in providing protection from falling ice and other debris from side-mounted beacons and side marker lights. The shield designs are suitable for incandescent, LED, and medium and high-intensity strobes.  Mounting brackets for round member leg attachment are available and purchased separately for leg and pole diameters from 1-1/8-inch (29-mm) through 7-3/4-inch (127-mm). Custom mounts are available from ERI to meet other requirements. ERI also offers custom ice shield configurations.

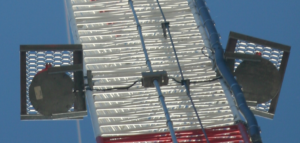

IS0005 Beacon Ice Shield

Beacon Ice Shield, 2-feet (610-mm) wide by 1.66-feet (506-mm) deep (out from tower), requires two (2) HRK0003 Universal Clamp Kit for leg mounting on up to 5.00-inches (127-mm) in diameter leg or two (2) HRK0068 Universal Clamp Kit for leg mounting on up to 7.75-inches (197-mm) in diameter leg, purchased separately.

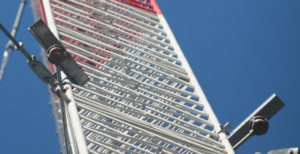

IS0053 Side Marker

Side Marker Ice Shield, 20.2-inch (510-mm) wide by 6.0-inch (152-mm) deep (out from tower) requires one (1) HRK0003 Universal Clamp Kit for leg mounting on up to 5.00-inches (127-mm) in diameter leg or one (1) HRK0068 Universal Clamp Kit for leg mounting on up to 7.75-inches (197-mm) in diameter leg, purchased separately.

HRK0003S Universal Clamp Kit

Universal clamp kit for leg mounting on legs from 1.125-inches (29-mm) to up to 5.00-inches (127-mm) in diameter. Includes four (4) each 1/2-13 X 4-inch Grade 2 galvanized full thread bolts and four (4) each 1/2-13 X 7-inch Grade 2 galvanized full thread bolts, four (4) 1/2-13 A563 galvanized nuts, eight (8) each 1/2-inch F436 galvanized flat washers and four (4) each 1/2-inch galvanized lock washers in addition to the two (2) galvanized steel mounting clamps.

HRK0068 Universal Clamp Kit

Universal clamp kit for leg mounting on legs from 4.75-inches (121-mm) to 7.75-inches (197-mm) in diameter. Includes two (2) each 1/2-13 X 14-inch galvanized thread rod, each rod includes two (2) each (four (4) total) 1/2-13 X  1/2-13 A563 galvanized nuts, four (4) each 1/2-inch F436 galvanized flat washers, and four (4) each 1/2-inch galvanized lock washers in addition to the two (2) galvanized steel mounting clamps.

Beacon Ice Shields - Tower Lighting Ice Shields and Mounts

Tower Lighting Ice Shields and Mounts

Download File
