Standard Ice Shields - Leg Mounted

Standard Ice Shields – Leg Mounted

ERI offers leg and face-mounted galvanized steel ice shields in standard configurations that can protect from falling ice and other debris for all types of side-mounted broadcast television and FM antennas as well as terrestrial microwave dishes of all commercially available sizes as well as ENG central receiving antennas, and other antenna types. ERI’s ice shields include mounting brackets and tie-backs to provide adequate support in severe weather conditions.  ERI also offers custom ice shield configurations and can supply modified mounts for its standard ice shield for special applications.

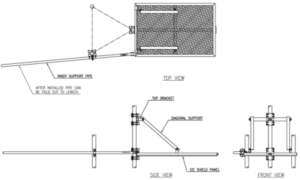

ISA03-04S Leg Mounted 3-Foot x 4-Foot Ice Shield

The ERI model ISA-03-046S is a steel leg-mounted ice shield with a ½ inch expanded metal grating. The grating is supported by a sturdy 2-inch x 2-inch x ¼ inch steel angle member frame and includes a tieback for uniform cross-section tower face sizes from 2.00 feet (610 mm) to 10.00 feet (3048 mm). All components are hot dip galvanized. Each ice shield includes leg mount brackets to attach to round tower members from 1.125-inch (29 mm) to 5.00-inch (127 mm) in diameter.

  • ISA03-04S
    Dish or Antenna Ice Shield, steel, 3.00-feet (914 mm) wide by 4.00-feet (1219 mm) deep (out from tower), includes hardware for leg mounting on 1.125-inch (29 mm) to 5.00-inch (127 mm) in diameter leg on uniform cross-section tower with up to a 10.00-foot (3048-mm) face, with one (1) included anti-rotation bracket to tie to an adjacent tower leg.

ISA04-06S Leg Mounted 4-Foot x 6-Foot Ice Shield Product Brochure


Download File

ERI Heavy-Duty Ice Shields

ERI’s Ice Shields which are 4 feet by 6 feet or larger than are constructed with one-inch by 1/8-inch 19W4 pattern galvanized steel bar grating. The selection of this material and the galvanized steel angle that makes up the support frame provide a structure that will survive and protect antennas and dishes in harsh weather environments.

ISA04-06S Leg Mounted 4-Foot x 6-Foot Ice Shield

The ERI model ISA-04-06S is a heavy-duty galvanized steel leg-mounted ice with standard models that includes tiebacks for uniform cross-section tower face sizes from 3.00-feet (914-mm), to 12.00-feet (3658-mm). Each ice shield includes leg mount brackets to attach to round tower members from 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter

  • Part Number
    Description
  • ISA04-06S-05
    Dish or Antenna Ice Shield, steel, 4.00-feet (1219-mm) wide by 6.00-feet (1829-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 5.00-foot (1524-mm) face.
  • ISA04-06S-07
    Dish or Antenna Ice Shield, steel, 4.00-feet (1219-mm) wide by 6.00-feet (1829-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 7.00-foot (2134-mm) face.
  • ISA04-06S-12
    Dish or Antenna Ice Shield, steel, 4.00-feet (1219-mm) wide by 6.00-feet (1829-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 12.00-foot (3658-mm) face.

ISA04-06S Leg Mounted 4-Foot x 6-Foot Ice Shield Product Brochure


Download File

ISA06-04S Leg Mounted 6-Foot x 4-Foot Ice Shield

The ERI model ISA-06-04S is a heavy-duty galvanized steel leg-mounted ice with standard models that includes tiebacks for uniform cross-section tower face sizes from 3.00-feet (914-mm), to 12.00-feet (3658-mm). Each ice shield includes leg mount brackets to attach to round tower members from 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter

  • Part Number
    Description
  • ISA06-04S-05
    Dish or Antenna Ice Shield, steel, 6.00-feet (1829-mm) wide by 4.00-feet (1219-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 5.00-foot (1524-mm) face.
  • ISA06-04S-07
    Dish or Antenna Ice Shield, steel, 6.00-feet (1829-mm) wide by 4.00-feet (1219-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 7.00-foot (2134-mm) face.
  • ISA06-04S-12
    Dish or Antenna Ice Shield, steel, 6.00-feet (1829-mm) wide by 4.00-feet (1219-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 12.00-foot (3658-mm) face.

ISA06-04S Leg Mounted 6-Foot x 4-Foot Ice Shield Product Brochure


Download File

ISA08-06S Leg Mounted 8-Foot x 6-Foot Ice Shield

The ERI model ISA-08-06S is a heavy-duty galvanized steel leg-mounted ice with standard models that includes tiebacks for uniform cross-section tower face sizes from 4.00-feet (1219-mm), to 12.00-feet (3658-mm). Each ice shield includes leg mount brackets to attach to round tower members from 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter.

  • Part Number
    Description
  • ISA08-06S-05
    Dish or Antenna Ice Shield, steel, 8.00-feet (2438-mm) wide by 6.00-feet (1829-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 5.00-foot (1524-mm) face.
  • ISA08-06S-07
    Dish or Antenna Ice Shield, steel, 8.00-feet (2438-mm) wide by 6.00-feet (1829-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 7.00-foot (2134-mm) face.
  • ISA08-06S-12
    Dish or Antenna Ice Shield, steel, 8.00-feet (2438-mm) wide by 6.00-feet (1829-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 12.00-foot (3658-mm) face.

ISA08-06S Leg Mounted 8-Foot x 6-Foot Ice Shield Product Brochure


Download File

ISA10-06S Leg Mounted 10-Foot x 6-Foot Ice Shield

The ERI model ISA-10-06S is a heavy-duty galvanized steel leg-mounted ice with standard models that includes tiebacks for uniform cross-section tower face sizes from 4.00-feet (1219-mm), to 12.00-feet (3658-mm). Each ice shield includes leg mount brackets to attach to round tower members from 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter.

  • Part Number
    Description
  • ISA10-06S-05
    Dish or Antenna Ice Shield, steel, 10.00-feet (3048-mm) wide by 6.00-feet (1829-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 5.00-foot (1524-mm) face.
  • ISA10-06S-07
    Dish or Antenna Ice Shield, steel, 10.00-feet (3048-mm) wide by 6.00-feet (1829-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 7.00-foot (2134-mm) face.
  • ISA10-06S-12
    Dish or Antenna Ice Shield, steel, 10.00-feet (3048-mm) wide by 6.00-feet (1829-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 12.00-foot (3658-mm) face.

ISA10-06S Leg Mounted 10-Foot x 6-Foot Ice Shield Product Brochure


Download File

ISA12-08S Leg Mounted 12-Foot x 8-Foot Ice Shield

The ERI model ISA-12-08S is a heavy-duty galvanized steel leg-mounted ice with standard models that includes tiebacks for uniform cross-section tower face sizes from 5.00-feet (1524-mm), to 12.00-feet (3658-mm). Each ice shield includes leg mount brackets to attach to round tower members from 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter,

  • Part Number
    Description
  • ISA12-08S-05
    Dish or Antenna Ice Shield, steel, 12.00-feet (3658-mm) wide by 8.00-feet (2438-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 5.00-foot (1524-mm) face.
  • ISA12-08S-07
    Dish or Antenna Ice Shield, steel, 12.00-feet (3658-mm) wide by 8.00-feet (2438-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 7.00-foot (2134-mm) face.
  • ISA12-08S-12
    Dish or Antenna Ice Shield, steel, 12.00-feet (3658-mm) wide by 8.00-feet (2438-mm) deep (out from tower), includes hardware for leg mounting on 1.25-inch (32-mm) to 8.00-inch (203-mm) in diameter leg on uniform cross section tower with up to a 12.00-foot (3658-mm) face.

ISA12-08S Leg Mounted 12-Foot x 8-Foot Ice Shield Product Brochure


Download File

  • Part Number
    Description
  • ISA10-08S-FACE
    Dish or Antenna Ice Shield, face mounted, steel, 10.00-feet (3048-mm) wide by 8.00-feet (2438-mm) deep (out from tower), includes hardware for attachment to tower legs from 1.25-inches (32-mm) to 8.00-inches (203-mm) in diameter on a uniform cross section tower with an 8.00-foot (2438-mm) face.
