CH240 and CH245 High Band VHF Hybrids
CH240 Specifications:
Frequency Range:
174 to 216 MHz
Output Power Rating:
20 kW average power
Input VSWR:
1.05: 1 or better over channel
Coupling:
3.01 dB +/- 0.1 dB over channel
Input Isolation:
32 dB min.
Inputs:
1-5/8-inch, 50 ohm unflanged flush FastLine compatible
Output:
3-1/8-inch, 50 ohm unflanged flush FastLine compatible
Load Port:
1-5/8-inch, 50 ohm unflanged flush FastLine compatible
Weight:
15.60 pounds
CH245 Specifications:
Frequency Range:
174 to 216 MHz
Output Power Rating:
20 kW average power
Input VSWR:
1.05 : 1 or better over channel
Coupling:
3.68 / 2.43 dB +/- 0.1 dB
Input Isolation:
32 dB min.
Inputs:
1-5/8-inch, 50 ohm unflanged flush FastLine compatible
Output:
3-1/8-inch, 50 ohm unflanged flush FastLine compatible
Load Port:
1-5/8-inch, 50 ohm unflanged flush FastLine compatible
Weight:
15.72 pounds

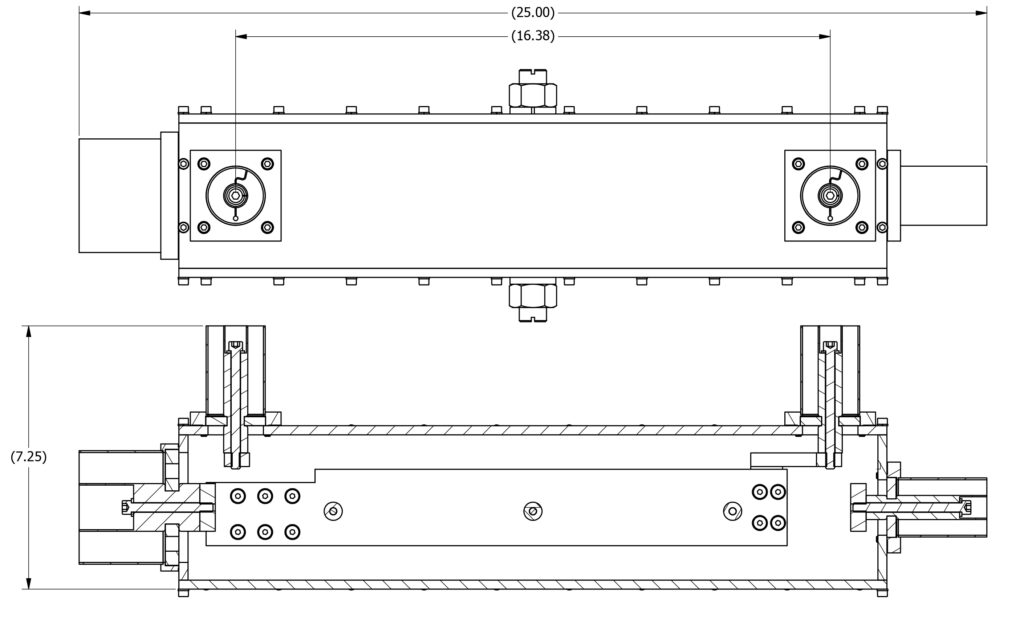

CH240 and CH245 Outline Drawing
CH240 and CH245 High Band VHF Hybrids publication
